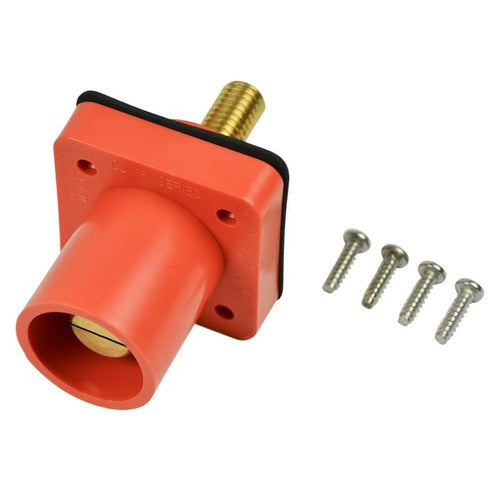

Marinco CL 16 Series 1-1/8" Threaded Stud, #2-4/0 AWG, 400A, 600V, 90 Degree Panel Mounts
$21.62
$21.62
SKU MAR-CL40MRSB-A
DescriptionSpecifications
Marinco’s 16 Series CL Panel mounts are equipped with a 1-1/8" threaded stud to provide a fast and secure connection. The sturdy construction is made with super tough nylon to stand up to everyday use in tough environments.
- Available in standard and an optional drilled out version to accommodate a #10-32 nut and bolt
- Includes 4 #8 plastite self-threading screws to mount easily to a panel flange
- Rated for use with 400A/600V connections
| Material | Nylon (housing), Brass (Contact) |
| Color | Multiple Options |
| Connection Type | 1-1/8In Threaded Stud |
| Gauge | #2 – 4/0 AWG |
| Voltage Rating | 600V AC/DC |
| Amperage | 400A |
| Series | 16 |
| Gender | Multiple Options |
| Standards | UL Listed: File E471676, CSA Certified: 0812900000, Environmental Rating: Type 3R & 4 |
| Nema Rating | Nema 3R and 4 |
| Brochure | View |
| Catalog | View |
